Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | CBM E8 24DC/0.5-10A NO-R |
| Approvals | UL Recognized, UL Listed, cUL Listed, cULus Listed, UL Listed, cUL Listed, UL Recognized, EAC, DNV GL, cULus Listed |
| Contact Type | without electrical isolation |
| Depth | 121 mm |
| Dielectric Strength | max. 30 V DC (Load circuit) |
| Efficiency | > 99 % |
| Fuse Type | electronic |
| Height | 130 mm |
| IP Rating | IP20 |
| Mounting Type | DIN rail: 35 mm |
| Power Dissipation | 17.2 W (Nominal operation) |
| Protection Class | III |
| Series | |
| Stripping Length | 10 mm |
| Type | DIN rail module, one-piece |
| UPC Code | 4046356992367 |
| Width | 41 mm |
Overview

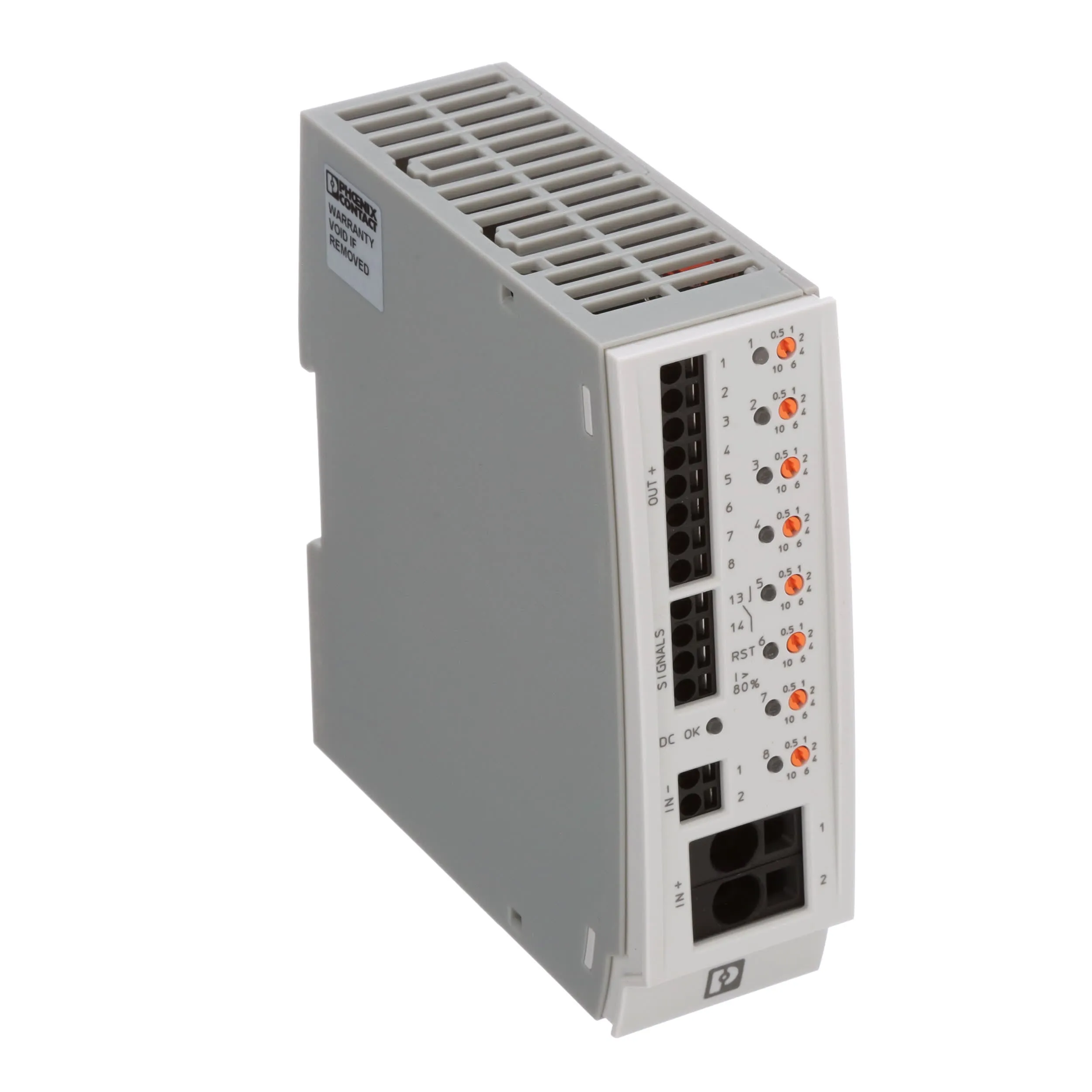

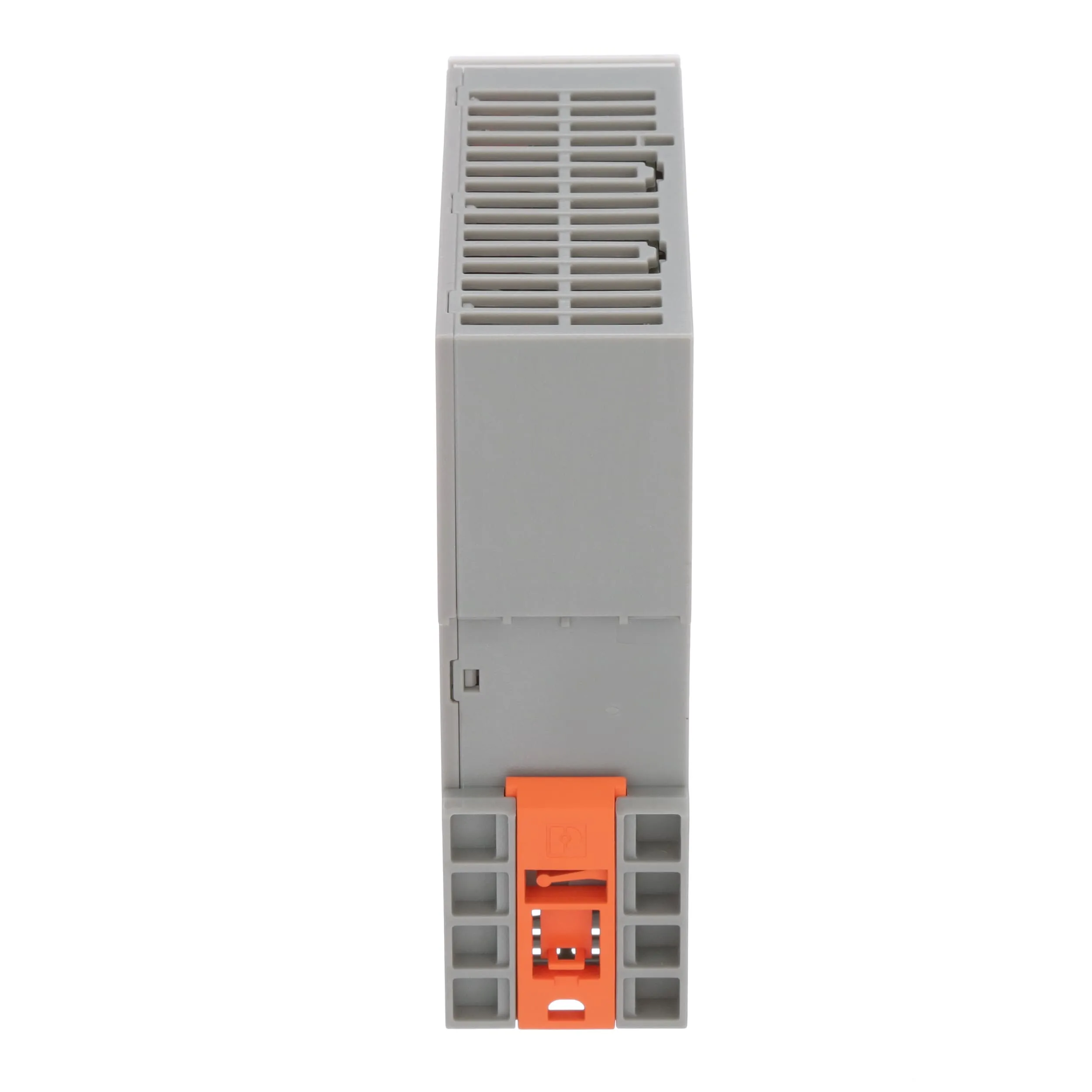

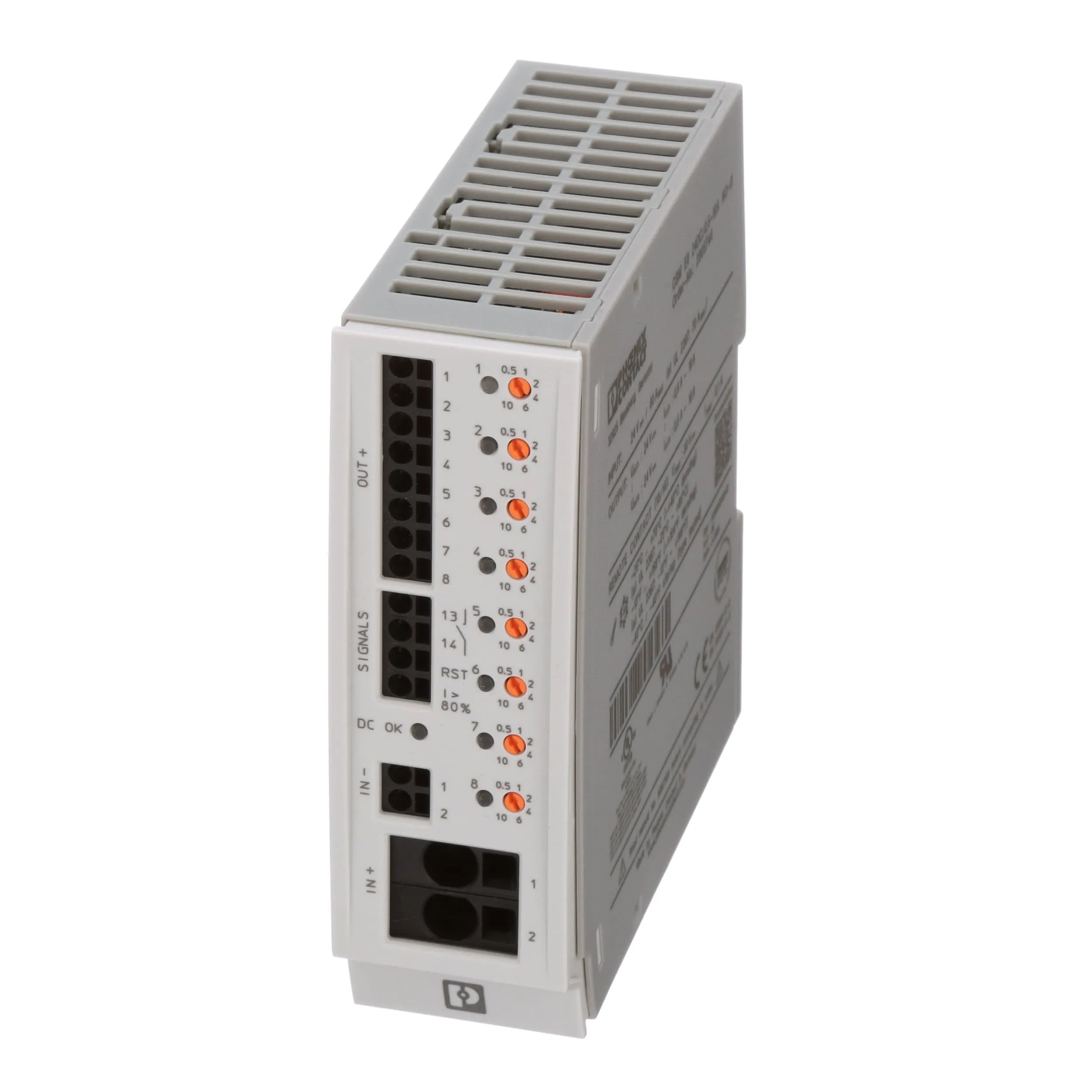

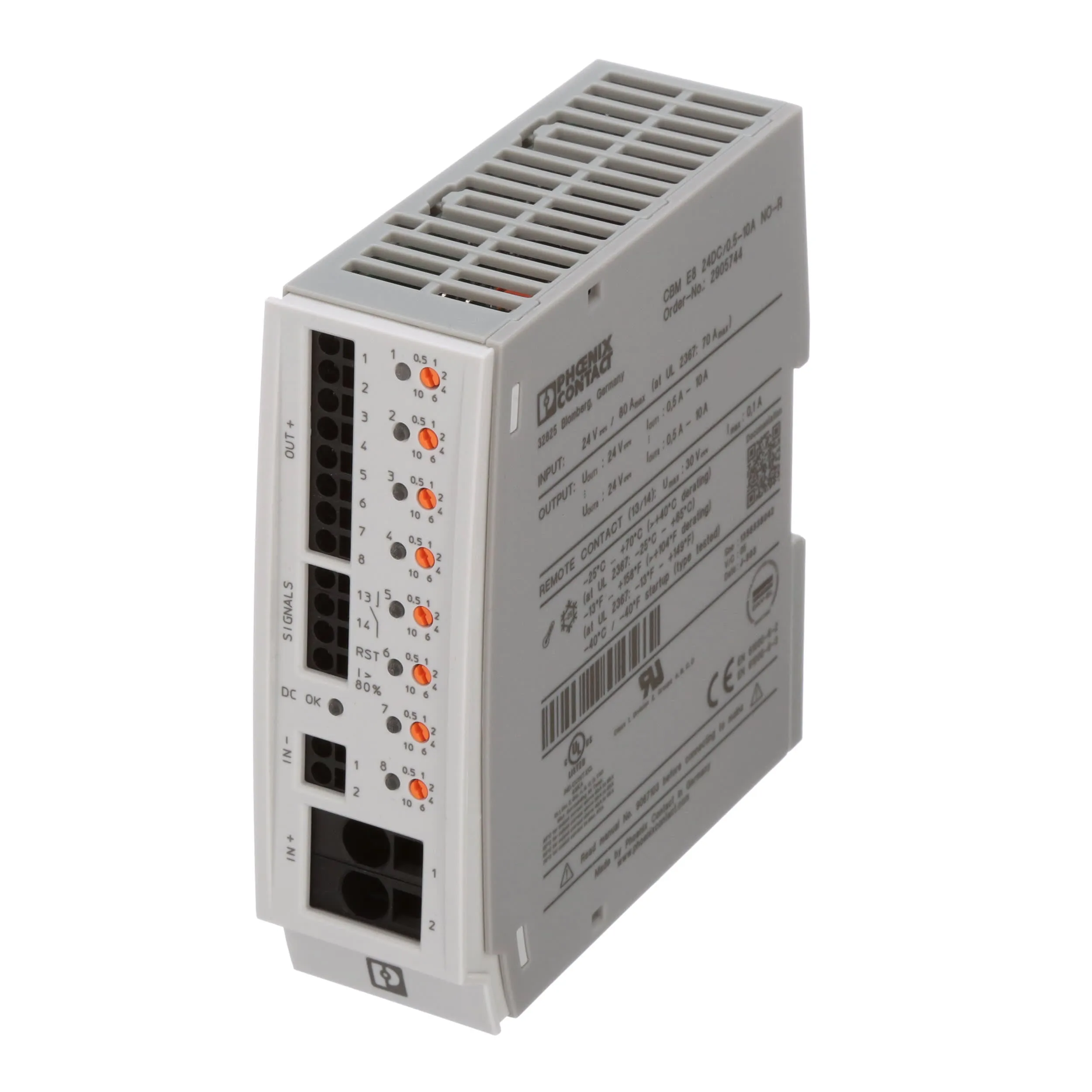

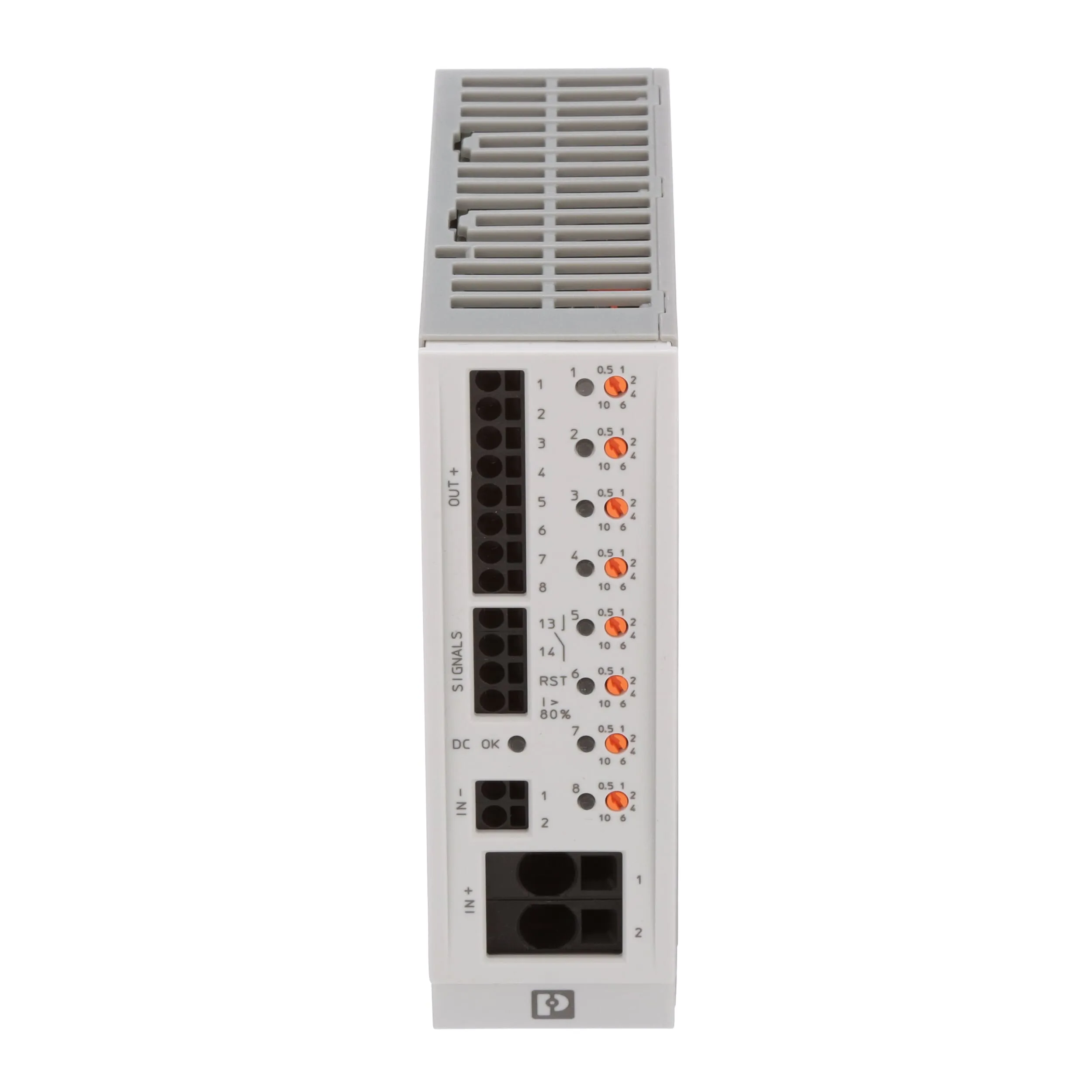

CBM Series Electronic Device Circuit Breakers
Multi-channel, electronic device circuit breaker with active current limitation for protecting eight loads at 24 V DC in the event of overload and short circuit. With nominal current assistant and electronic locking of the set nominal currents. For installation on DIN rails.
Features:
