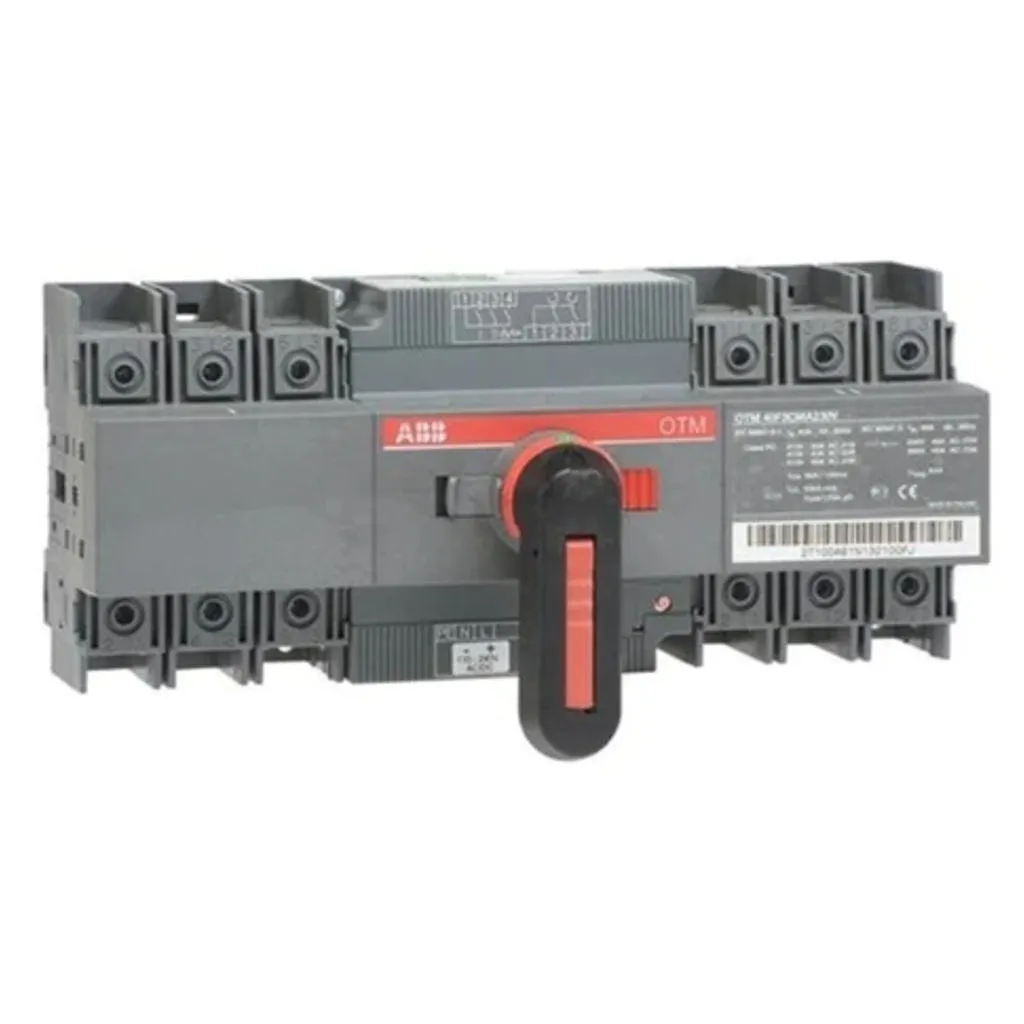

Product Description
-
Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits. Types OTM630...2500E_ include a storage clip for the handle and spare fuses
-
Conventional Thermal Current (Ithe) : Fully Enclosed 40 A
-
Rated Impulse Withstand Voltage (Uimp) : 8 kV
-
Rated Insulation Voltage (Ui) : 800 V
-
Rated Operational Voltage : 800 V
-
Rated Short-time Withstand Current (Icw) : for 1 s 2.5 kiloampere rms
-
Motor Operational Voltage : 110 ... 240 V AC/DC
-
Pollution Degree : 3
-
Handle Color : Black
-
Handle Type : Direct mounted handle
-
Switches Operating Mechanism : Mechanism at the End of the Switch
-
Distance Between Phases : Standard
-
Position of Line Terminals : Top In - Bottom Out, Bottom In - Top Out
-
Operating Mode : Front operated
-
Mounting Type : Base mounting
-
Number of Poles : 3
-
Cable Cross-Section : 2.5-16 mm²
-
Degree of Protection : Front IP20
-
Product Net Width : 230 mm
-
Product Net Height : 100 mm
-
Product Net Depth / Length : 116 mm
-
Product Net Weight : 1.64 kg
Product Specification
|
Rated Current (A) |
Product Id |
Model |
|
40 |
1SYN120096R1001 |
OTM40F3CMA230V |
|
63 |
1SYN120095R1001 |
OTM63F3CMA230V |
|
80 |
1SYN120093R1001 |
OTM80F3CMA230V |
|
100 |
1SYN120071R1001 |
OTM100F3CMA230V |
|
125 |
1SYN120070R1001 |
OTM125F3CMA230V |
